| Make |
various |
| Model |
5U/MU/.com STG Env/Mod/AMult/Mix |
| Description |

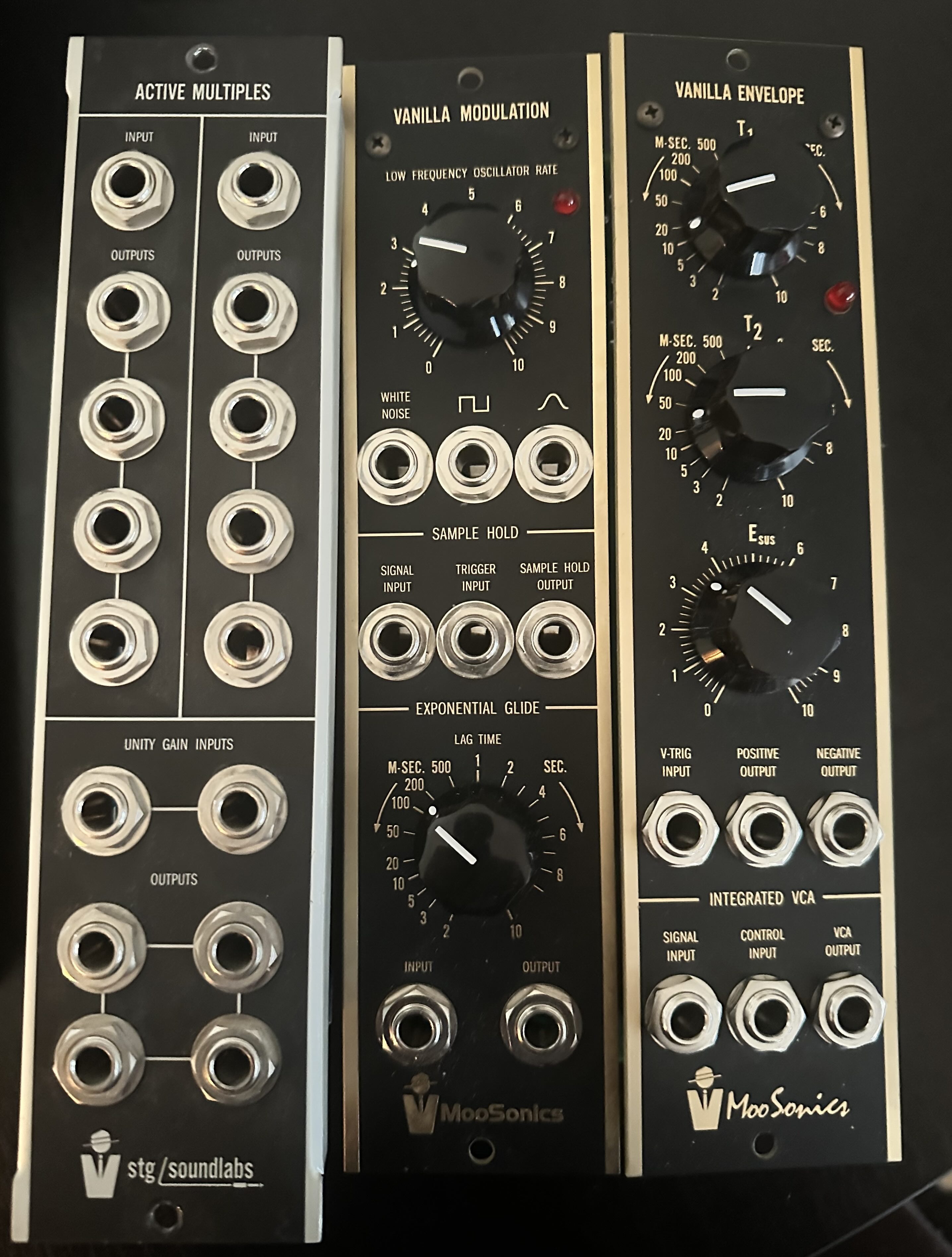

STG (Suit and Tie Guy Labs) Bundle of modules
Vanilla Envelope : The muSonics Vanilla Envelope is an ADS(R) EG and VCA based on the circuits of the Oberheim SEM.The VCA has its control input normaled to the positive output of the EG, so you only need a gate signal and audio signal to get a meaningful output from the VCA.
Vamilla Modulation : Vanilla Modulation combines all of the modulation sources in a Oberheim SEM two voice synthesiser into one module.
The top third are sources. There is a low frequency oscillator with square and sine outputs, and a noise source tuned a bit in between white and pink so it can be used for both audio and modulation.
The middle is a sample hold, with its inputs normaled to the noise and square wave.
The bottom of the module is an lag or glide processor with exponential response. Yes it can process 1v/oct control signals. Its input is normaled to the sample hold output.

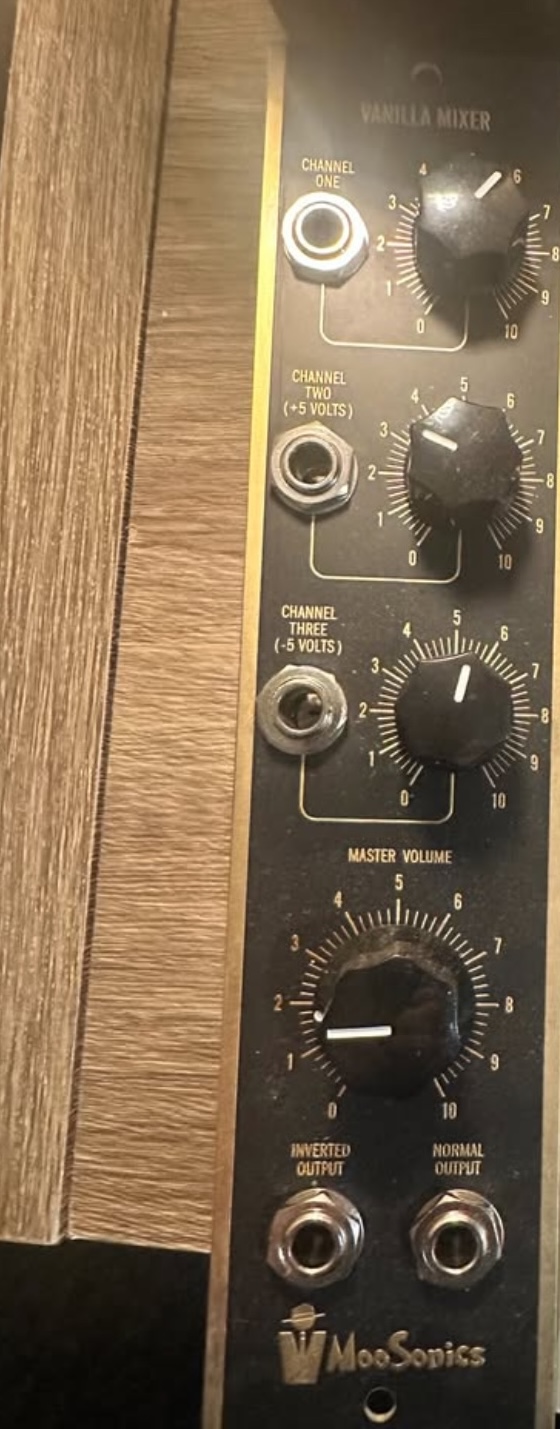

Vanilla Mixer
The Vanilla Mixer is based on the output mixer of a SEM two voice synthesizer from the 1970s.
A third channel, an inverted output, and normalized DC offsets have been added to allow for a variety of voltage processing and tone shaping operations. It has a gain coefficient of 6.6:1 and an AC coupled output. This matches the output section of the two voice SEM synthesizer it's based on.
STG Active Multiples : The Active Multiples module is a set of 3 4-output buffered multiples. The lower multiple has two inputs allowing it to act as a unity gain mixer as well.
Buffered multiples are important for control and trigger routing because they ensure that no unexpected impedance loading damages the scaling of control voltages or the strength of trigger signals.
|
|
| Age |
n/a |
| Weight |
n/a |
| Condition |
Very good |
| Location |
Uk |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Plug not required |
| Voltage type |
Power supply not needed |
| Status |
Item has been sold or not sold in a previous auction |
| Sale type |
The item is on the auction rooms |
| Ending on |
12/04/2026 |
| Category |
Synthesizer (Modular) |
| Serial number |
N/A |
| Sphere reference |
# 30879 |
| Statistics |
Created on : 28/03/2026 |
 |
Changed on : (Not updated) |
| |
Published on : 28/03/2026 |
| |
Displayed : 171 time(s) by members and guests |
