If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.
| Make |
various |
| Model |
5U/MU/.com STG Env/Modulation/AMult |
| Description |

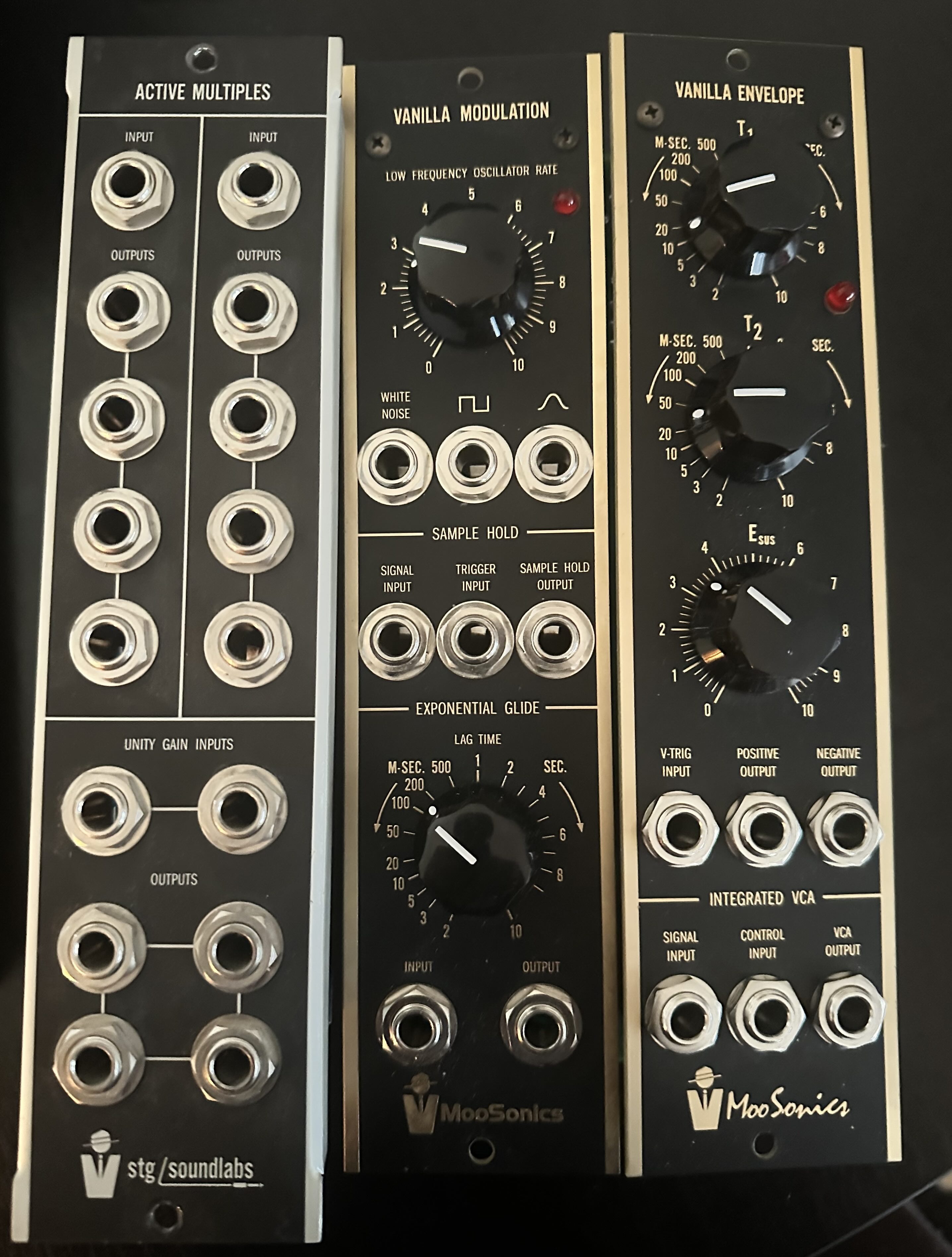

3 Suit and Tie Guy 5U/MU/.com modules bundle: Vanilla Env & Modulation based on SEM and Active Multiples.
The muSonics Vanilla Envelope is an ADS(R) EG and VCA based on the circuits of the Oberheim SEM.The VCA has its control input normaled to the positive output of the EG, so you only need a gate signal and audio signal to get a meaningful output from the VCA.The envelope generator is an all transistor design except for the output level shifting and inversion,
and the integrated VCA is a dual OTA circuit based on the 3080 VCA in the SEM but with increased input gain and uses both OTA cells of a 13700 chip to increase signal-to-noise ratio and reduced ringing in the output buffer stage.
Vanilla Modulation combines all of the modulation sources in a certain 1970s two voice synthesiser into one module.
The top third are sources. There is a low frequency oscillator with square and sine outputs,
and a noise source tuned a bit in between white and pink so it can be used for both audio and modulation.The middle is a sample hold, with its inputs normaled to the noise and square wave.
The bottom of the module is an lag or glide processor with exponential response.
Yes it can process 1v/oct control signals. Its input is normaled to the sample hold output.
The Active Multiples module is a set of 3 4-output buffered multiples.
The lower multiple has two inputs allowing it to act as a unity gain mixer as well.
Buffered multiples are important for control and trigger routing because they ensure that no unexpected impedance loading damages the scaling of control voltages or the strength of trigger signals. |
|
| Age |
n/a |
| Weight |
n/a |
| Condition |
Very good |
| Location |
Uk |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Plug not required |
| Voltage type |
Power supply not needed |
| Status |
Item is still available |
| Sale type |
The item is on the auction rooms |
| Ending on |
11/04/2026 |
| Category |
Synthesizer (Modular) |
| Serial number |
N/A |
| Sphere reference |
# 30806 |
| Statistics |
Created on : 23/03/2026 |
|
Changed on : (Not updated) |
| |
Published on : 23/03/2026 |
| |
Displayed : 23 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
Prices and conditions  |
 top |
|
|
|
The following section gives you the prices as well as shipment and payment conditions associated with the item. Payment is always requested in GBP. Converted price is shown for information and converted with Sphere standard currency rate.
Shipment and Payment links gives you access to an extended description of our rating :
| Start price |
250 GBP |
| Converted price (1) |
250 GBP |
| Shipment |
International or local shipment to pay |
| Packing costs |
0 GBP |
| Payment |
Full pre payment needed |
| Auction bid step |
10 GBP |
| Auction highest bid |
0 GBP |
| Converted highest bid |
0 GBP |
| Leader or winner |
*None |
| (1) Currency conversion |
Note that conversion rates were last adjusted on 10th October 2025 at 14:22 CET. They are there to give you a rough guide to the bid price in your currency. Please check for a more up-to-date conversion at https://www.x-rates.com/calculator.html. The bid price will be the actual price in pounds (GBP) at the moment the auction closes. This will be roughly converted to your currency for your information.
For technical reasons, we are unable to update the conversion from GBP to Euro during the auction, although it may change at any time. If you are in the euro zone please check the current rate at https://www.x-rates.com/calculator.html
Payments must always be in GBP. For more info please see the FAQ about exchange rates.https://spheremusic.com/Winfaq.asp?Question=91. |
|
|
|
|
|
|
