| Make |
Eventide |
| Model |

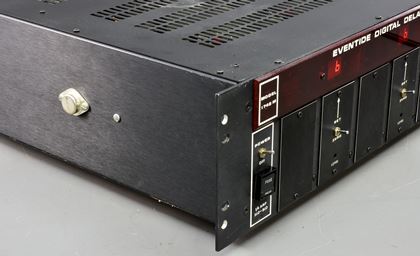

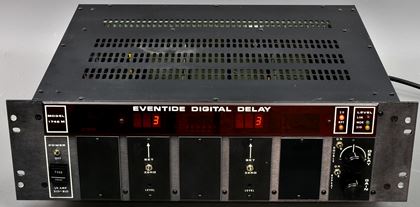

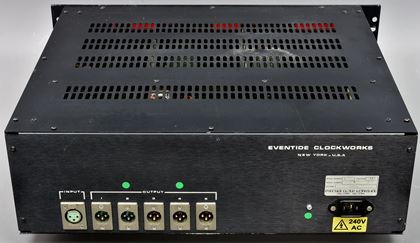

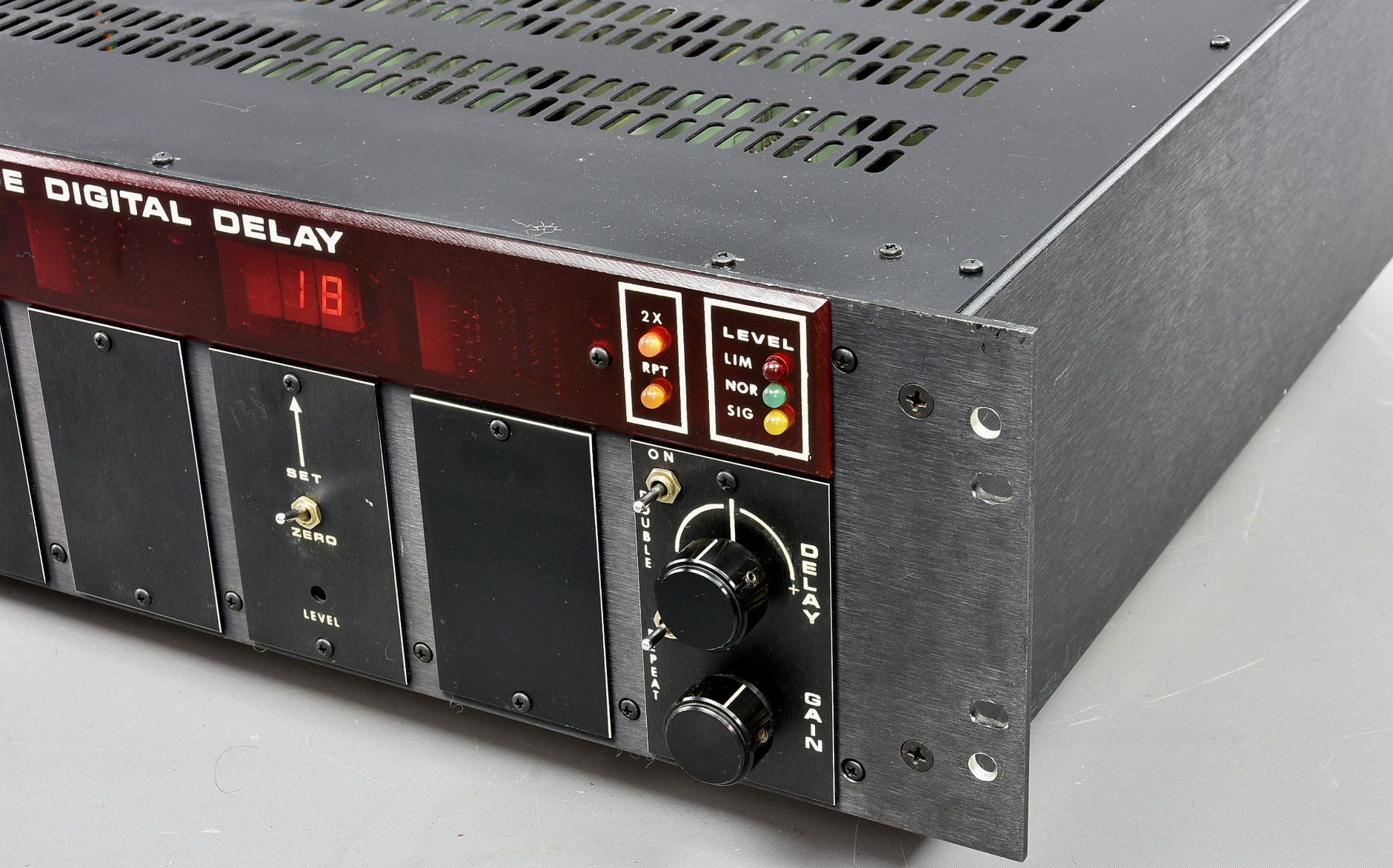

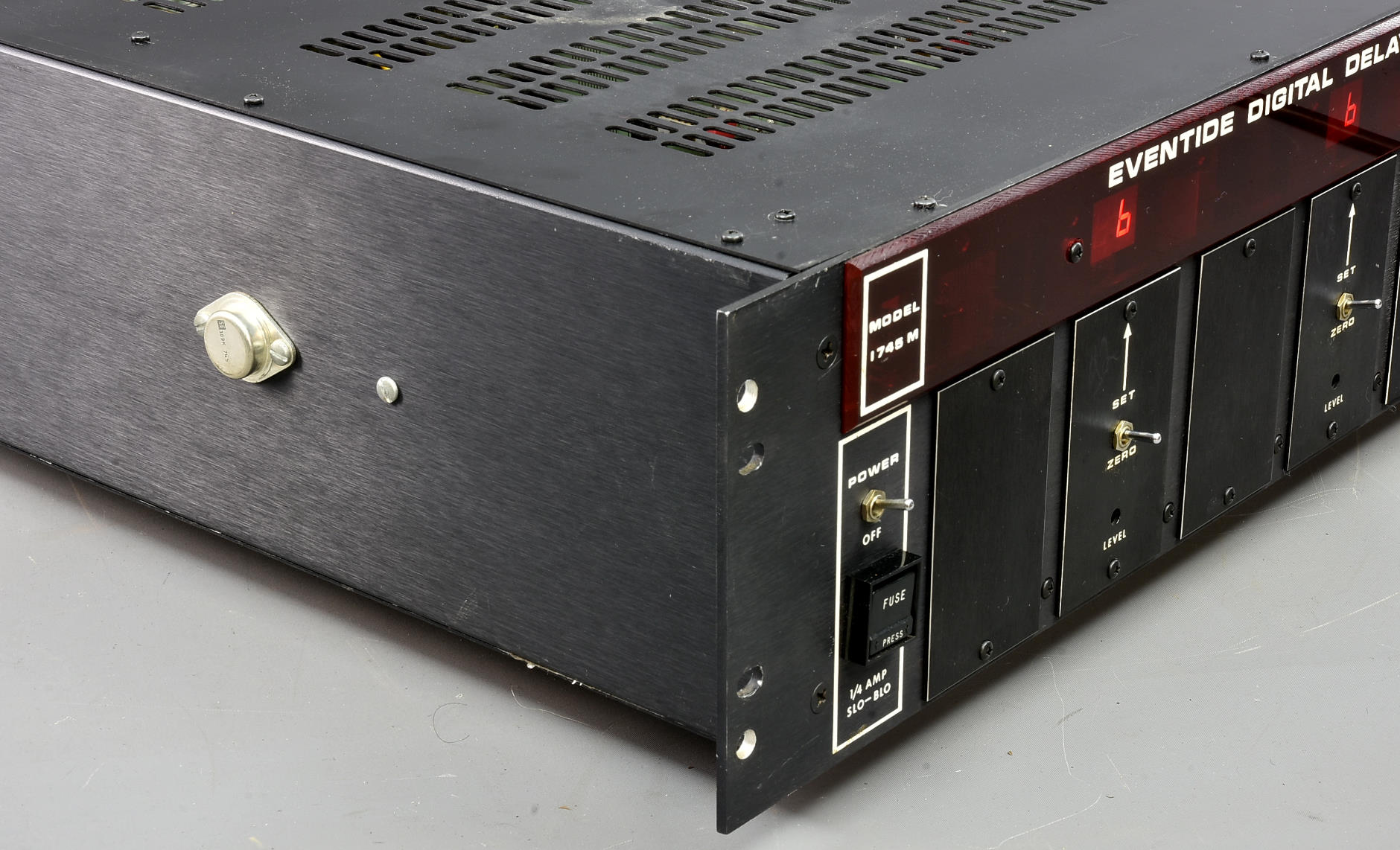

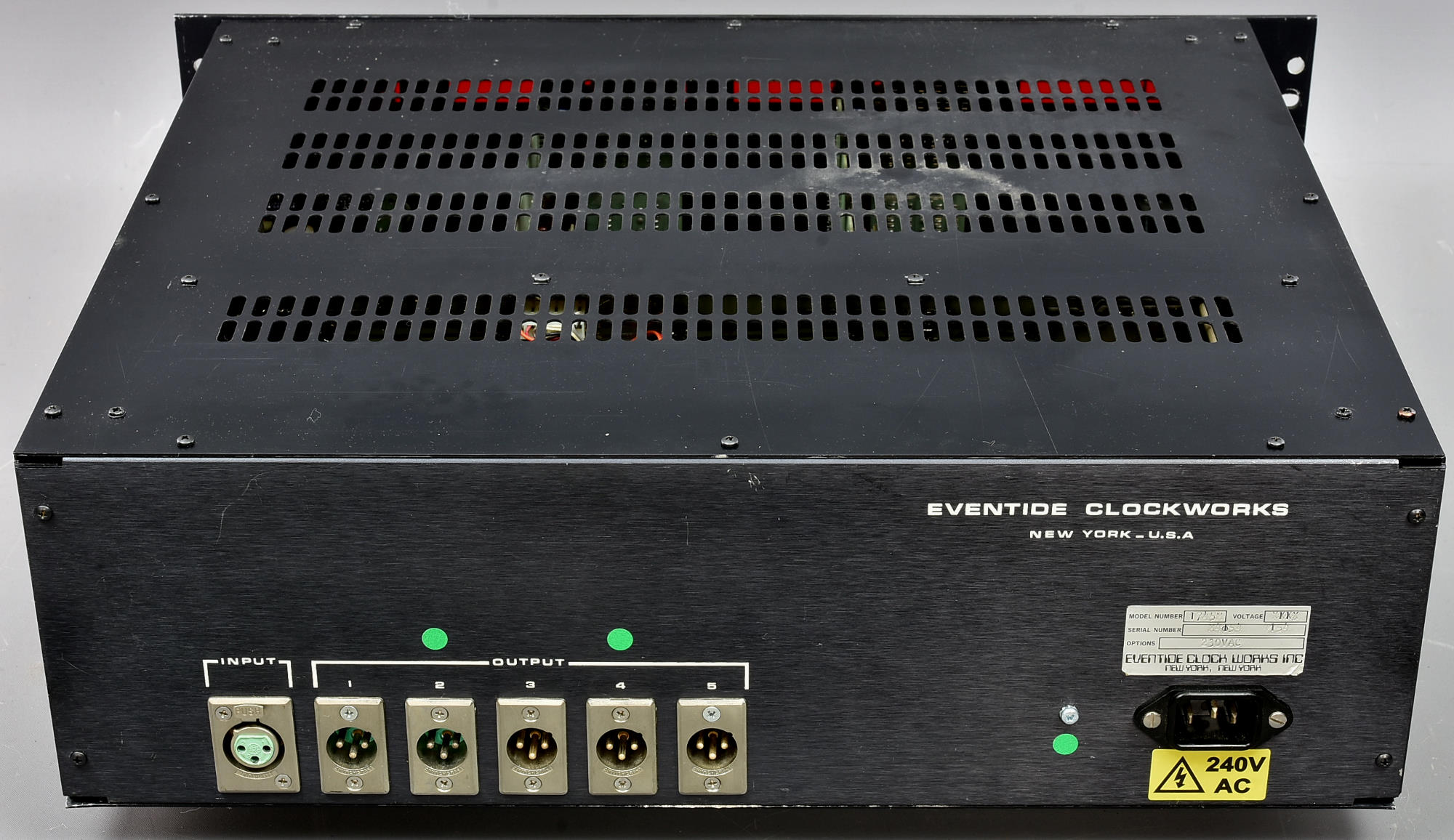

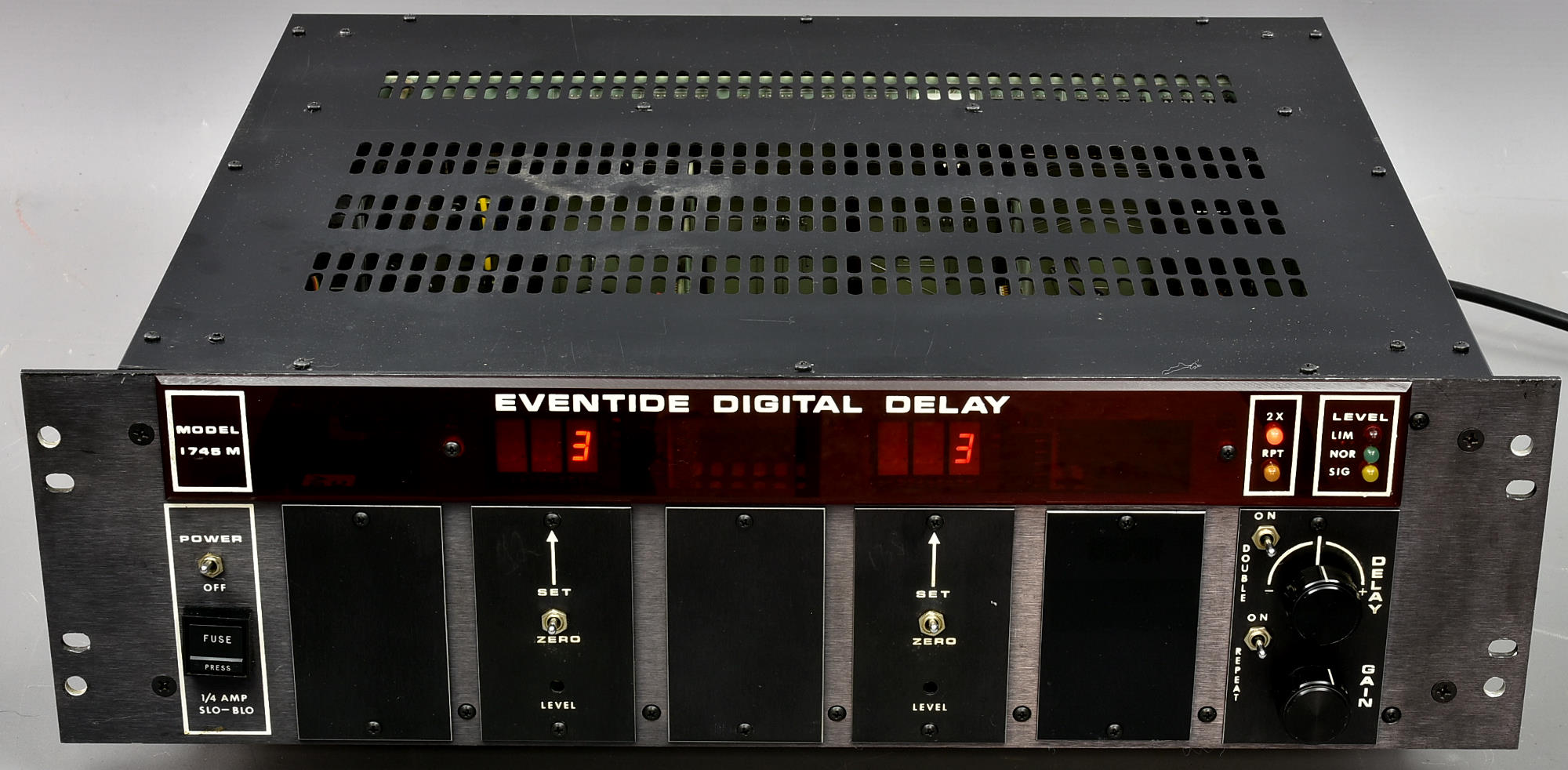

1745M Digital Delay Line |
| Description |
A classic early digital delay, s/n M4154, fully serviced by Hideaway in Feb / March 2022. Here's Dani's report: Unit rebuilt with two Delay Channel options present
• NB: Full FIFO memory option present
• NB: Backplane/PSU sub-assembly previously fully recapped with a mix of Bulk EL, metal film & small EL caps
• Some tantalum supply decoupling caps replaced on input and output boards
• NB: Tantalum caps on FIFO board appear to have been replaced in the past with MF and EL caps
• Severe dry joints identified and repaired on some of the DBX cards. Broken toggle switches removed/replaced.
• Input level knob had been replaced with a preset trimmer in past – replaced with correct pot and control knob
• Ribbon cable headers secured in sockets with cable ties
• Rear panel drilled to accept grounding point and chassis earth safety bonded. Unit marked for 240V operation
• FIFO memory tested with sine wave – no memory errors appear to be present
• Dislodged red display lens removed, cleaned, drilled and secured with UNC screws
• Unit reassembled with a new set of black UNC screws and various cosmetic improvements
• Unit configured for 240V - Unit powered and all functions tested present. Unit soak tested
Packing 12GBP.
|
|
| Age |
n/a |
| Weight |
n/a |
| Condition |
Very good |
| Location |
Uk (Item is at Vemia Uk) |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
United Kingdom standard plug |
| Voltage type |
Internal 220-240V power supply |
| Status |
Item is still available |
| Sale type |
The item is on the auction rooms |
| Ending on |
09/11/2024 |
| Category |
|
| Serial number |
M4154 |
| Sphere reference |
# 24552 |
| Statistics |
Created on : 30/03/2022 |
|
Changed on : 05/09/2024 |
| |
Published on : 06/10/2024 |
| |
Displayed : 1056 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
