This page displays the information available for the Boehm-Unique expanded Soundlab modular as (Sphere item # 14414).
To enlarge the image, and access any other images, please click on it.

Detailed description, from the owner or the reseller, prices and supported shipment are displayed. Question and answers as well as reserving or bidding for the item are also available on dedicated pages by using the links on the menu.


Detail    top
If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.

 Make Boehm
 Model Unique expanded Soundlab modular as

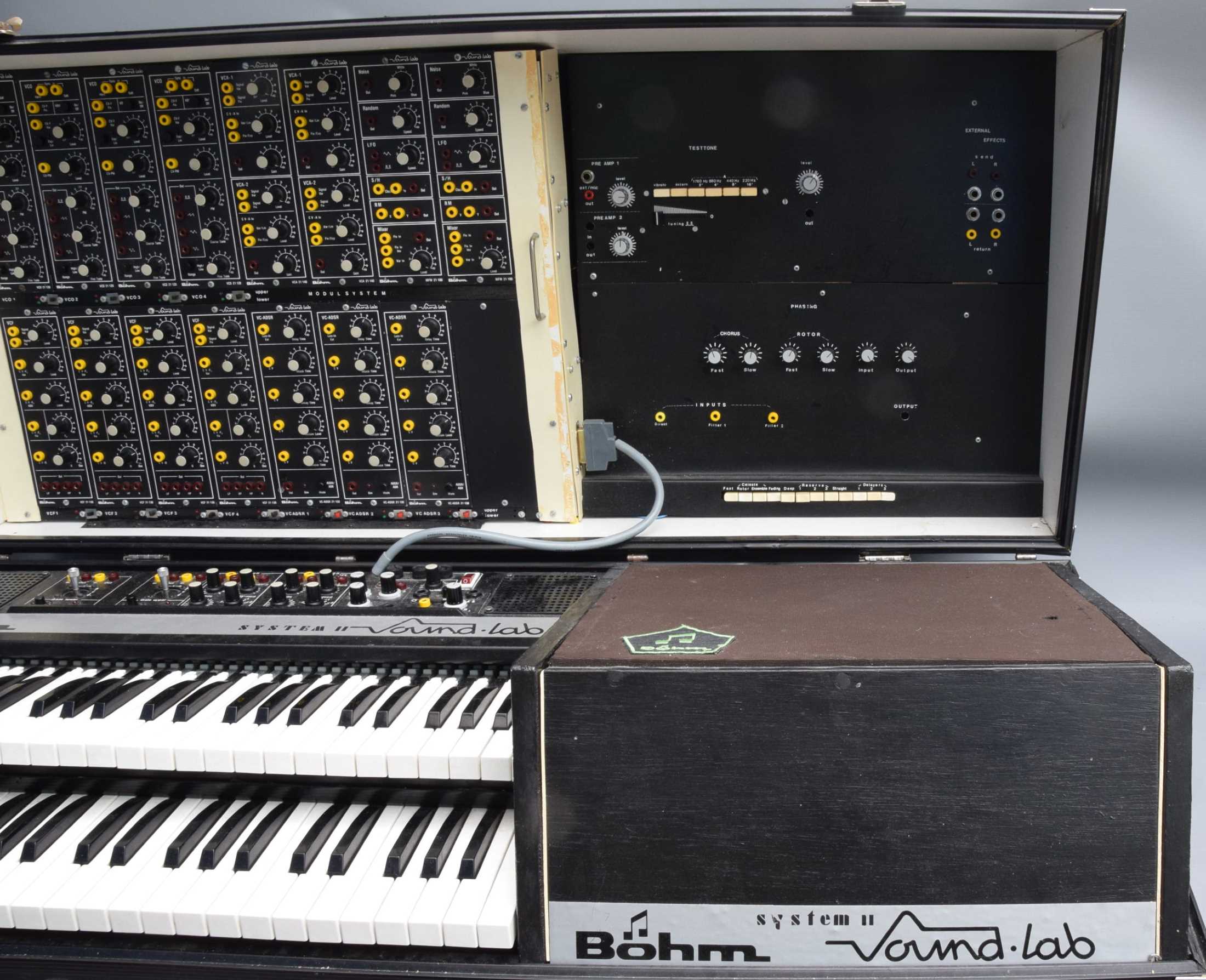

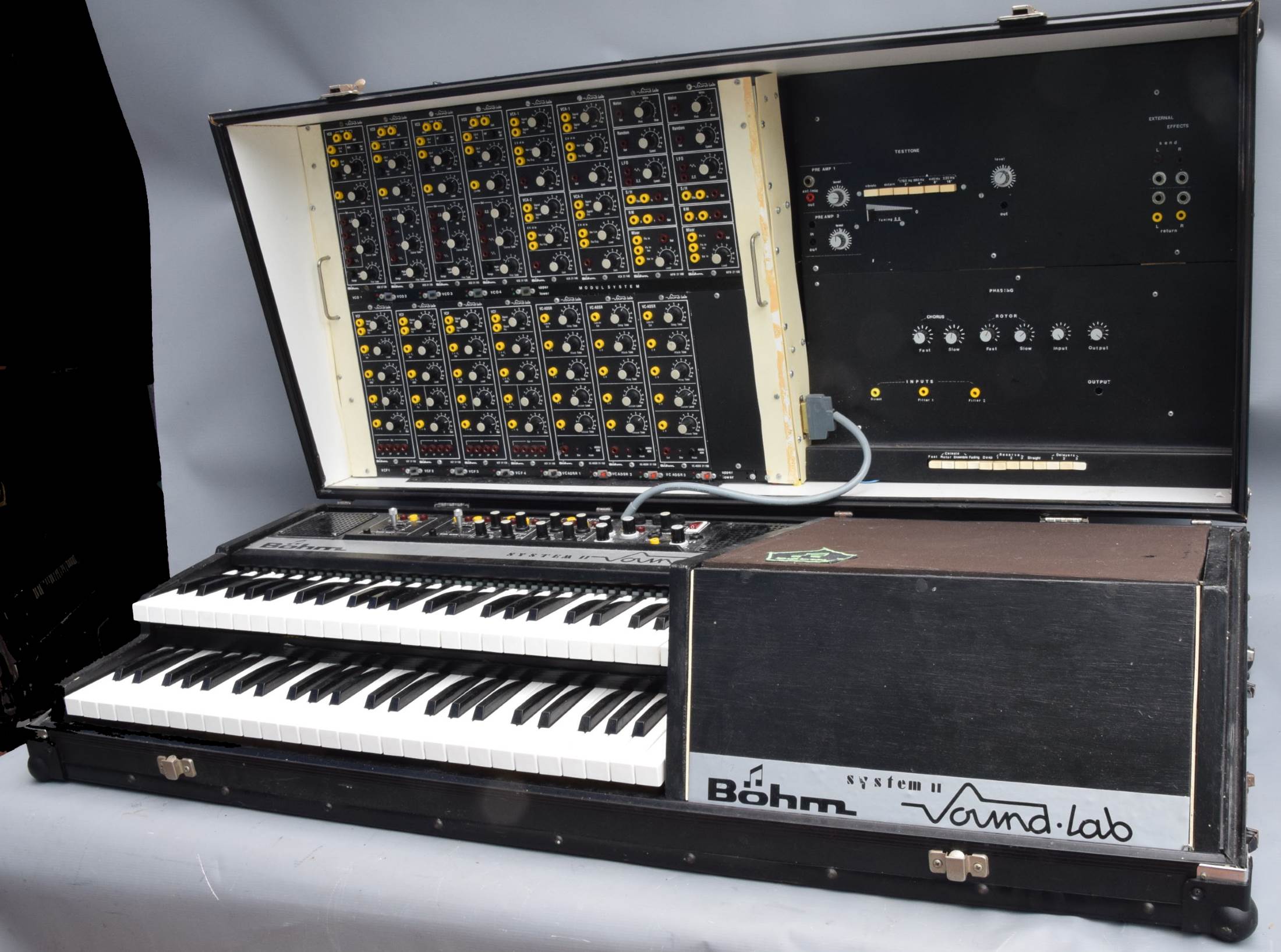

 Description An extraordinary thing. This is fundamentally a giant one-off instrument combining a very well-specified set of rare Soundlab modules with a dual keyboard, some outboard of unknown origin, and the largest ever speaker on an instrument of this type. It's always great having built-in speakers on an instrument (think ARP 2600 or VCS3), but they never usually put out anything remotely lower than mid-range frequencies. This looks like it could kill a room with bass.

The bad news is that the whole thing is so heavy that it is hard to transport, and actually even hard to lift. We collected it from Europe, got it down several flights of stairs safely, back to VEMIA, went to pick it up from one end to put it vertical... and the handle snapped, and the lifted end of the instrument fell six inches onto a cork tiled floor. That shouldn't have done it much harm, but now the top keyboard is loose. We feel it must have had a few more accidents in its long life, because you'll notice that every single one of the handles is actually snapped. Although as far as we are aware all the modules worked fine, it was already going to need servicing - one of the keyboard CVs not working, some noisy pots and a few missing sockets, plus a lot of the peripherals of unknown working order - but now that will include re-fixing the upper keyboard.

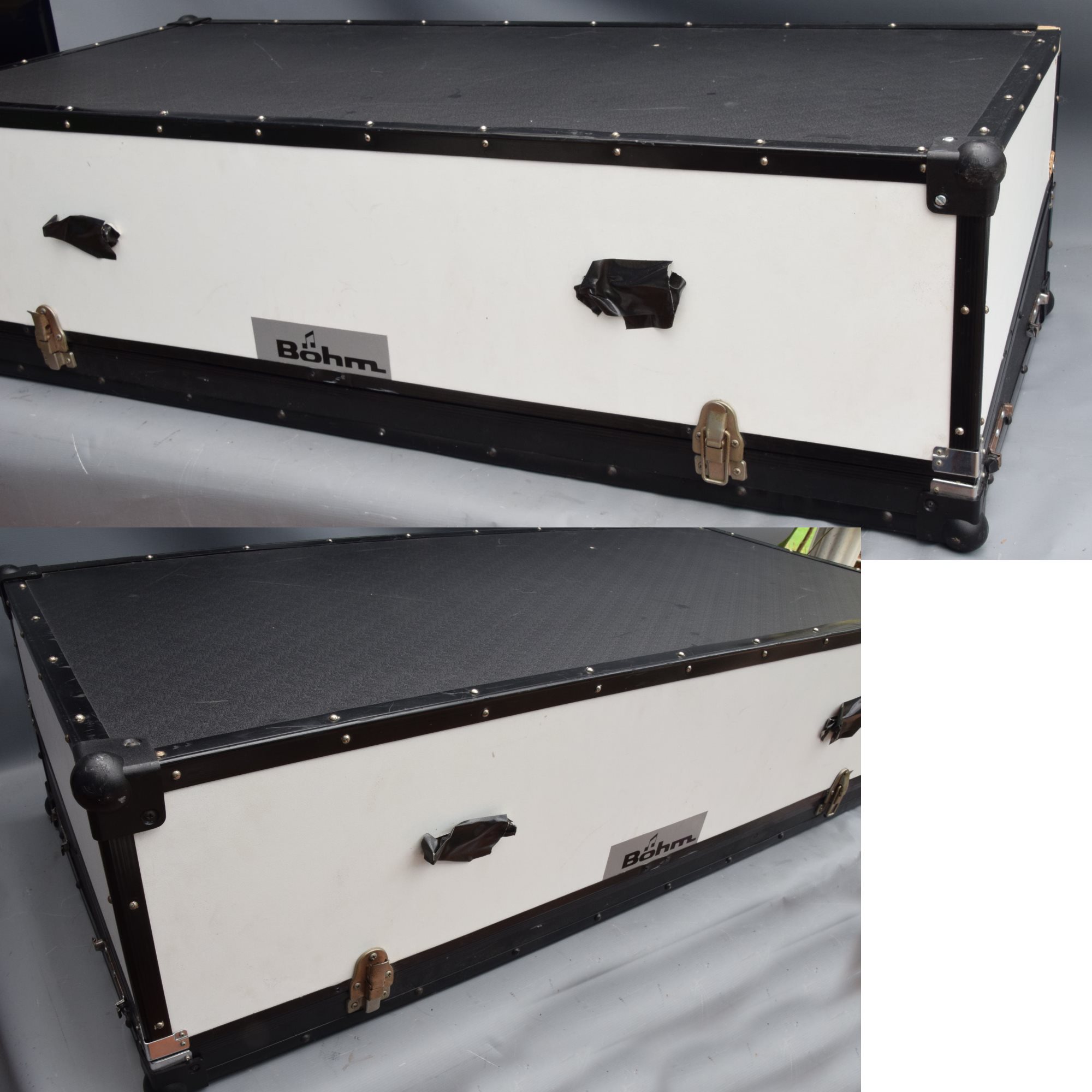

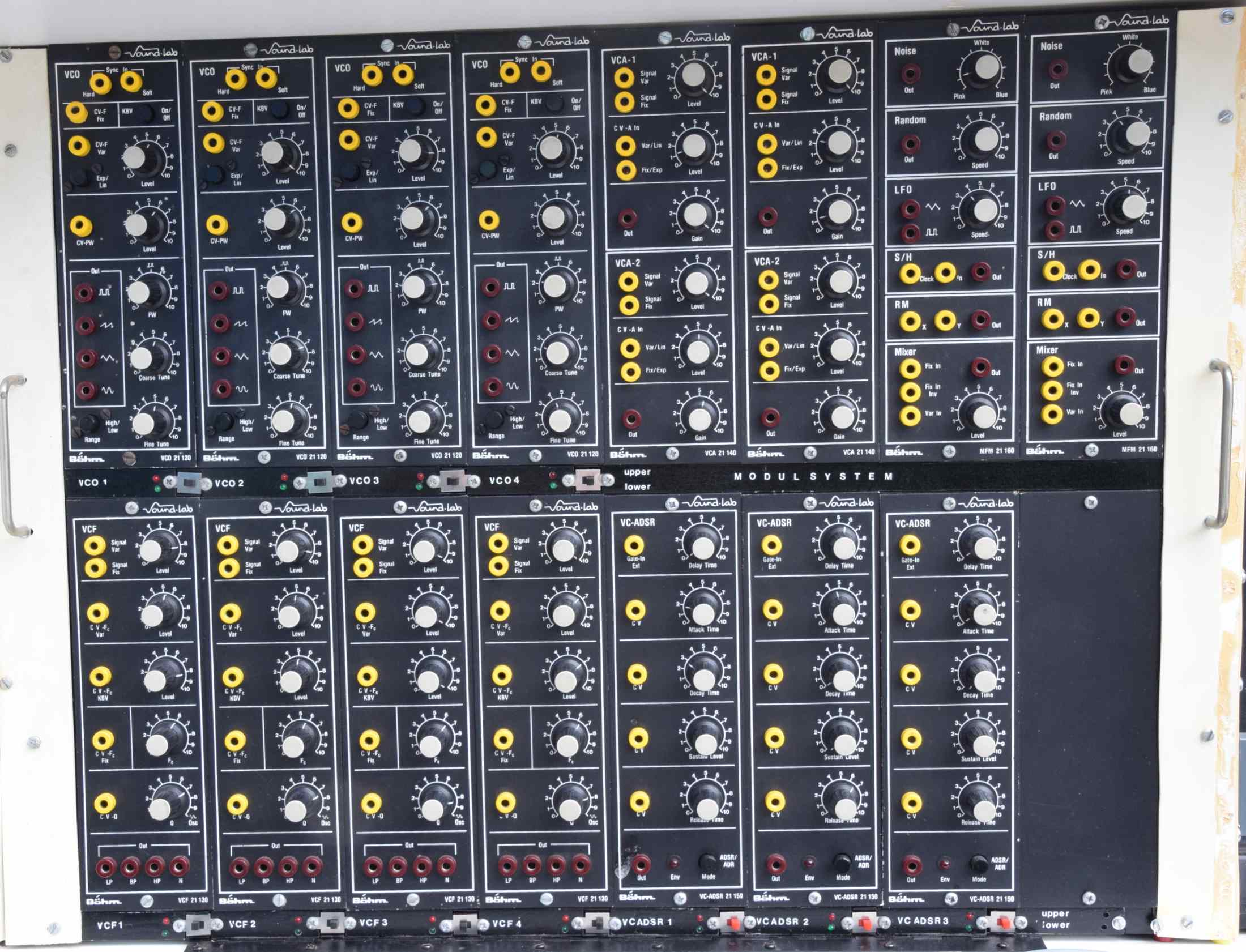

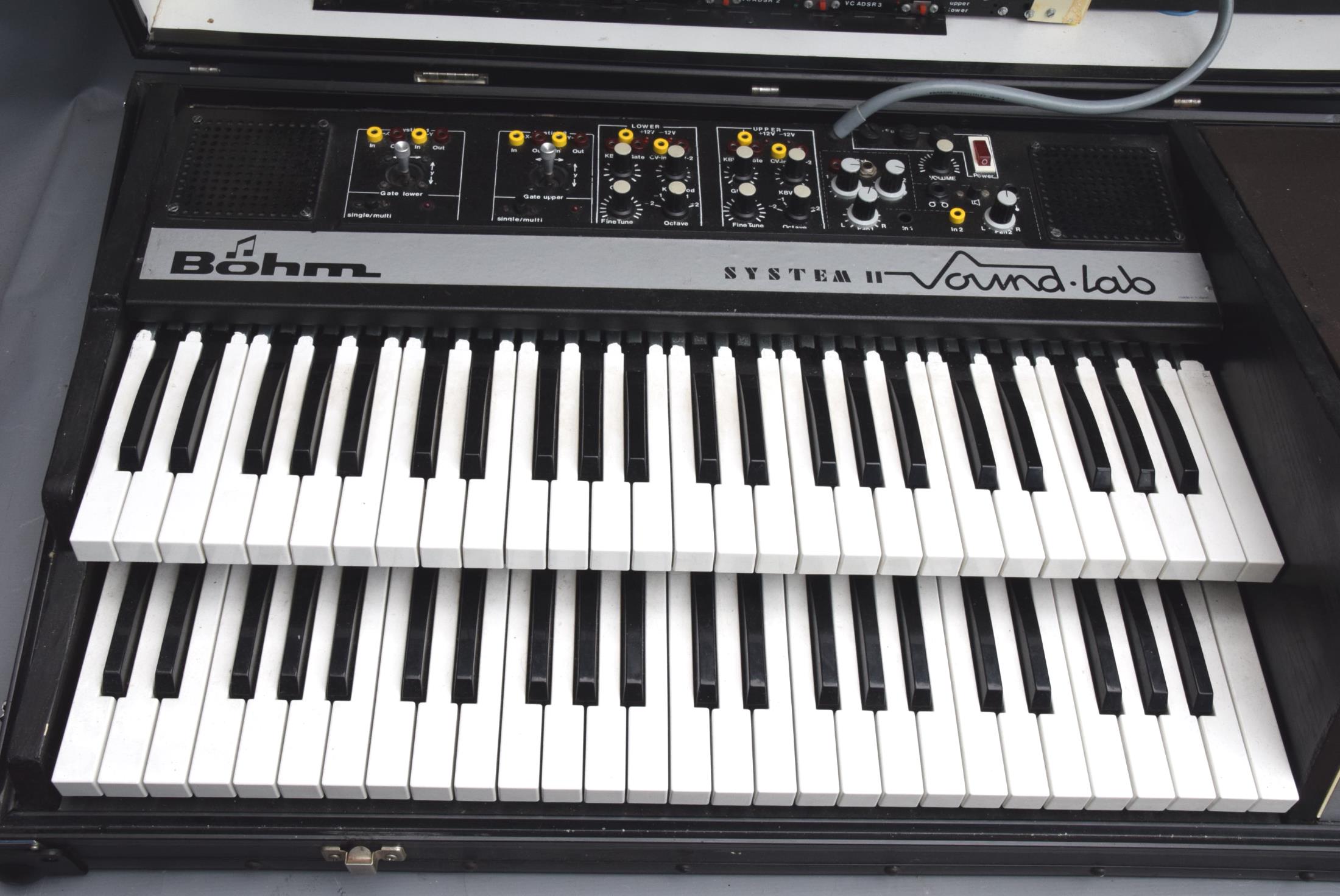

That's the bad news. The good news is that even discounting the peripherals the modules themselves are rare, interesting, and valuable. It must be one of the best-specified Soundlabs in the world, with four VCO21 120s, four VCF21 130s, two VCA21 140s, three VCADSR21 150s, two MFM21 160s each with noise, random, LFO, S&H, ring-mod, and a little mixer, two joystick modules, two keyboard controller modules, and the power supply. There is also a neat switching system for routing each keyboard to each module, It comes with a good collection of 24 stackable banana leads ranging from short to long. Cosmetically the case and some of the peripherals are 6/10 at best (one corner protector is missing, the fittings are probably under-specified for the weight, and there are signs of localised damage to the case although the whole thing is still structurally pretty solid), but the modules themselves and the keys are in fundamentally good condition. It has an interesting history, having spent its life until recently either at the Institute of Sonology in The Hague, or at STEIM in Amsterdam. Whether you want to get it renovated to its original crazy design, or rationalise the modules, switching and keyboards into a more portable system, it could be a very interesting project.

We will certainly not send this by courier! It can either be delivered by hand, or we can palletise it at your expense.

 Age n/a
 Weight 55 kg
 Condition Near good
 Location Uk (Item is at Vemia Uk)
 Vat Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc.
 Quantity 1 item is available from the owner
 Options User manual : No
  Service manual : No
  First owner : No
  Original boxes : No
 Plug type Europe standard plug
 Voltage type Internal 220-240V power supply
 Status Item has been sold or not sold in a previous auction
 Sale type The item is on the auction rooms
 Ending on 07/11/2015
 Category Synthesizer (Modular)
 Serial number Unknown
 Sphere reference # 14414
 Statistics Created on : 29/10/2015
Changed on : 29/10/2015
  Published on : 29/10/2015
  Displayed : 1501 time(s) by members and guests
Safety All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional.
