If any word is underlined, you can click on to get more detail. Click on the photo to enlarge it and see more photos if available.
| Make |
Formant |
| Model |
Formant Modular |
| Description |

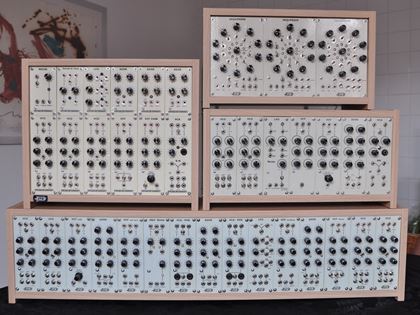

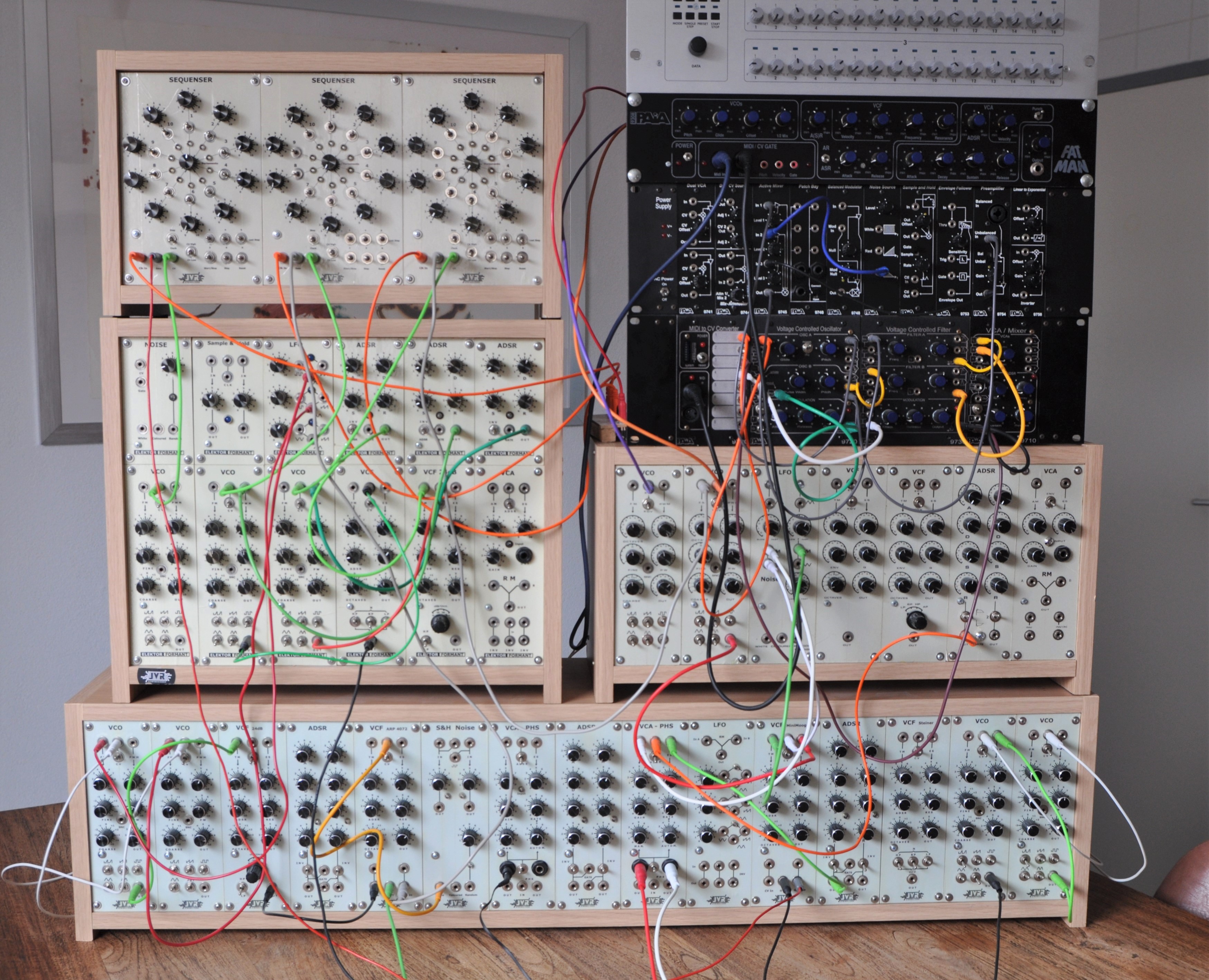

This is a Formant-based modular system consisting of 4 modular cases. They were made in 2017 and are completely analogue, utilizing the Formant technique with new components. These modulars are truly unique, rare and perfectly functioning, and they were made by Jos van Ras (as indicated by the logo labels on the cases).
Each case comes with its own 220V power supply, which means that they can also be used separately. In consideration of space and weight, the cases were designed to be less deep (all 20 cm) and tall, making them more manageable. Additionally, these cases are also in good condition.
Specification of the modulars:
Modular unit 1:

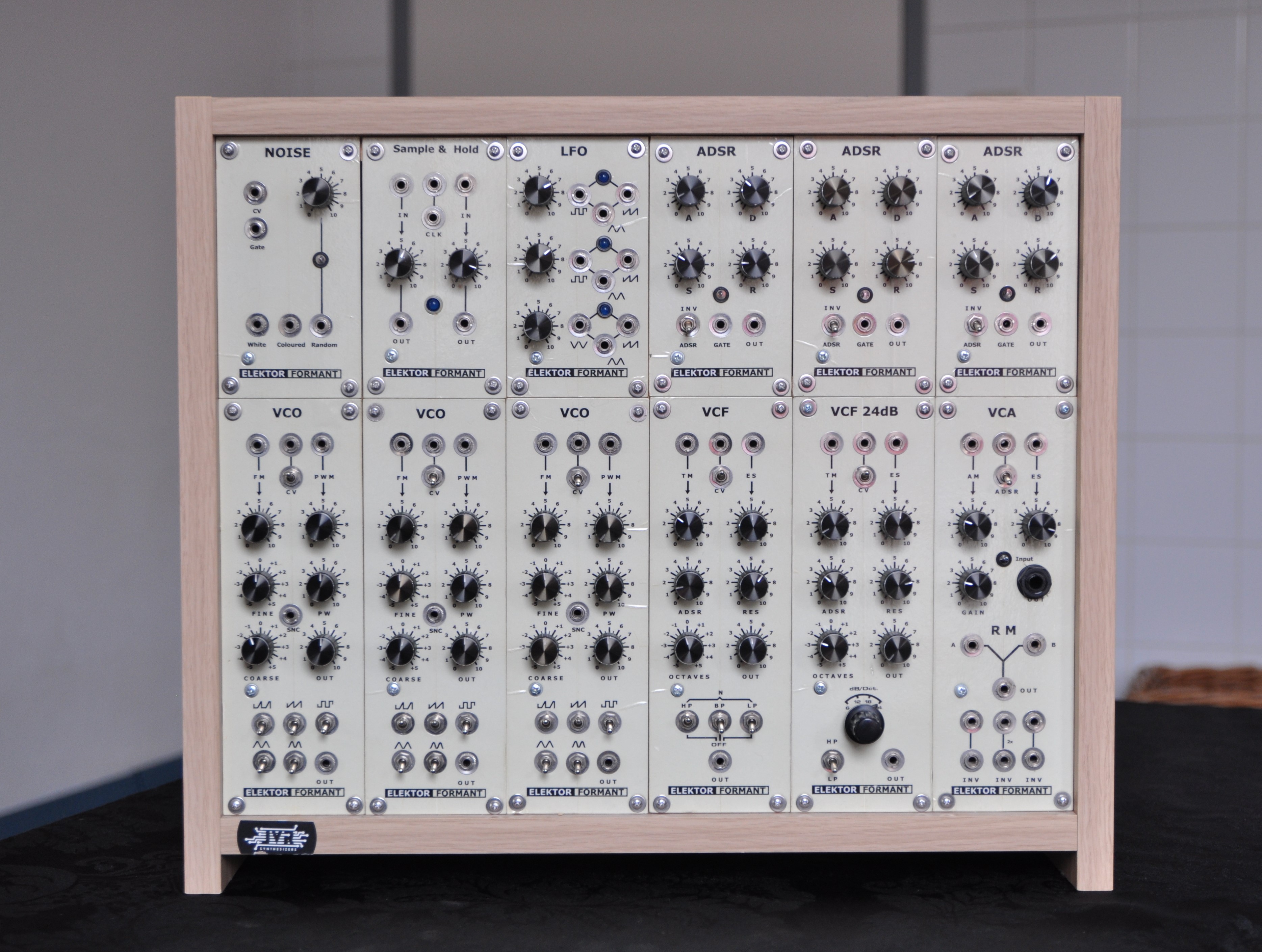

1x Noise, 1x sample & hold, 1x LFO, 3x ADSR, 3x VCO, 1x VCF, 1x VCF 24dB, 1x VCA
Modular, unit 2:

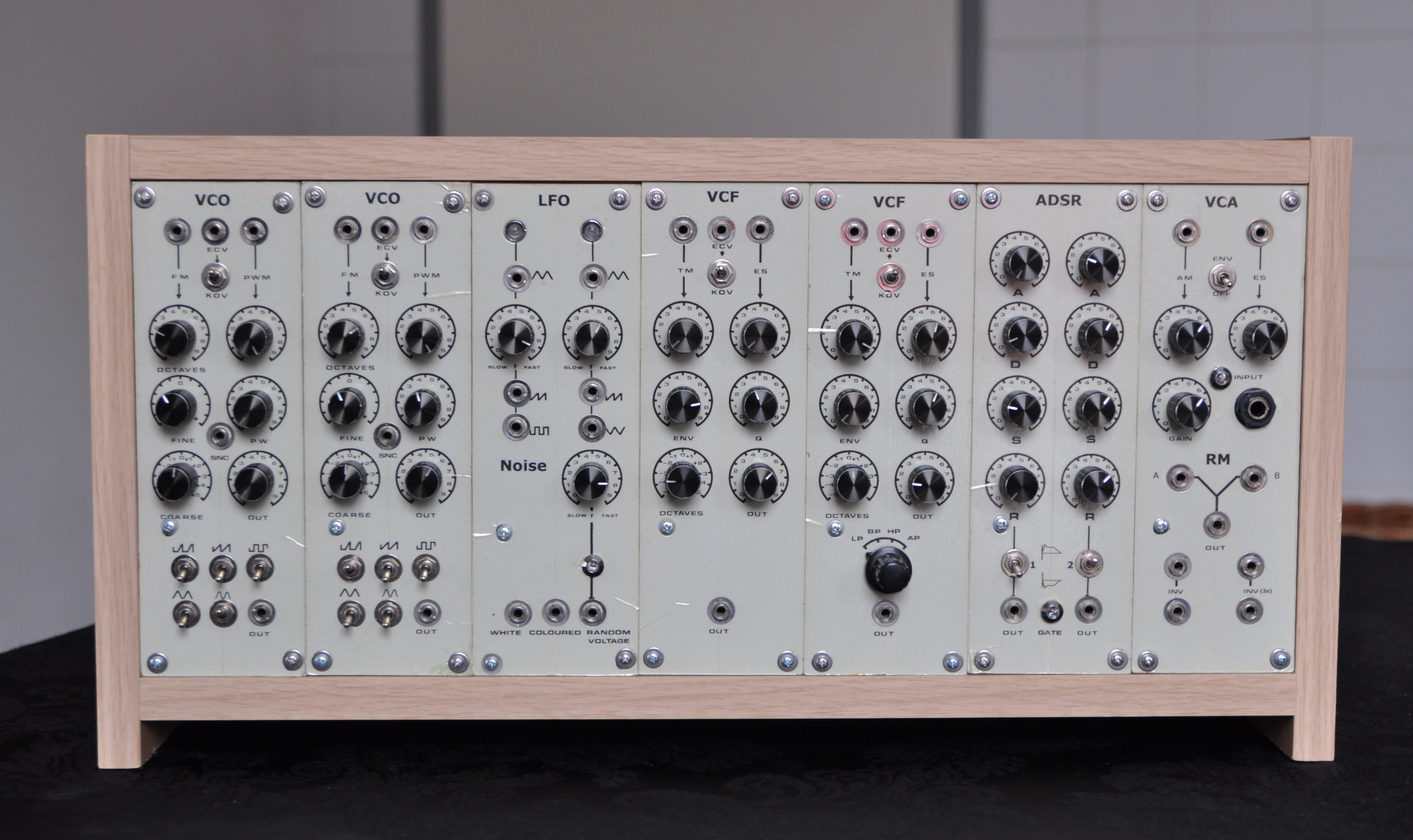

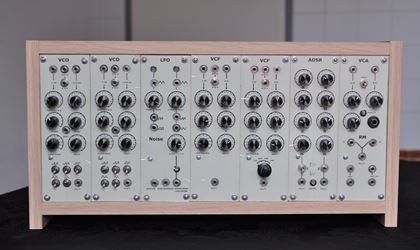

2x VCO, 1x LFO, 1x VCF, 1x VCF 24dB, 1x ASDR, 1x VCA
Modular unit 3:

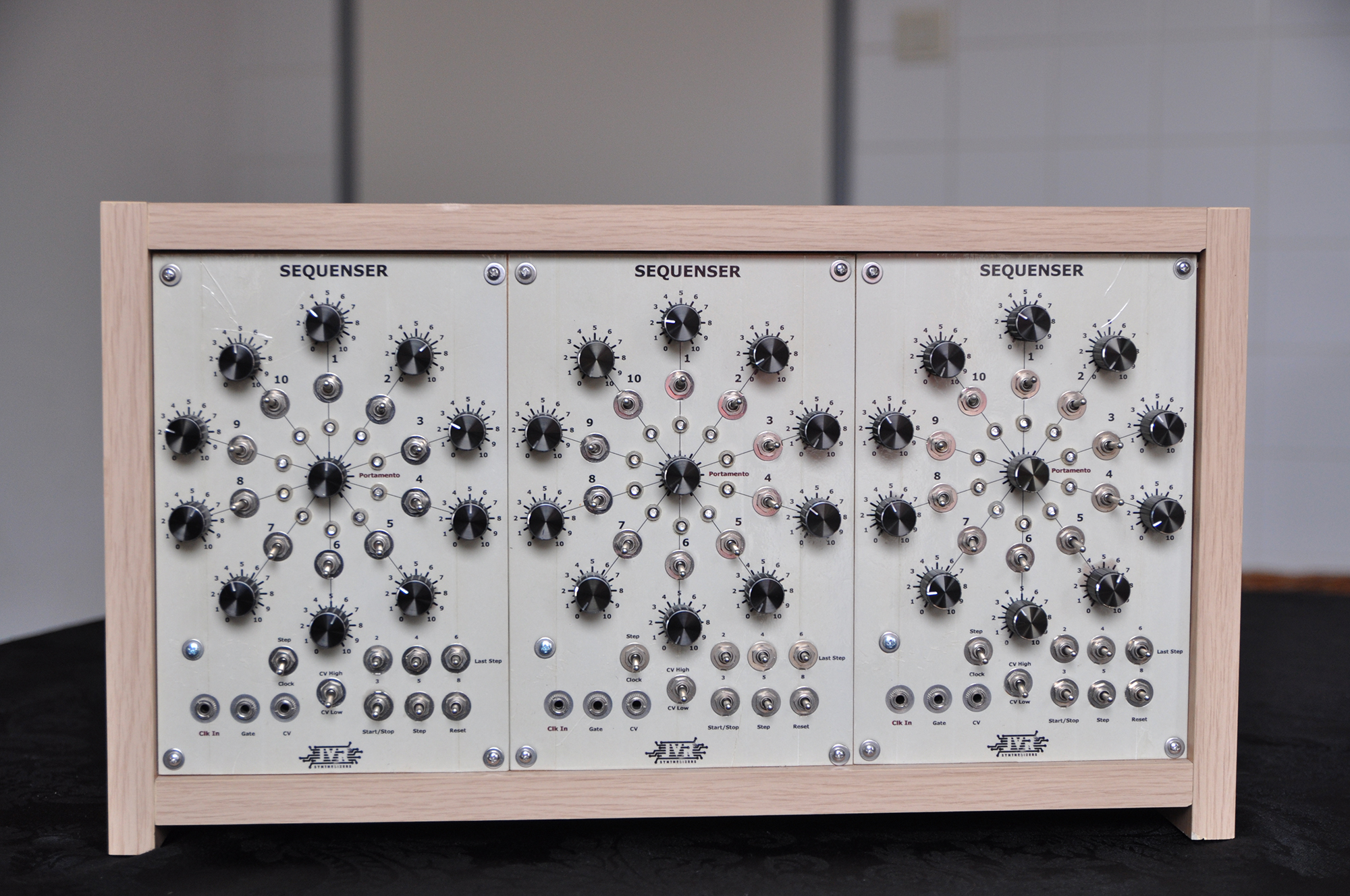

3x sequencers.
Modular, unit 4:

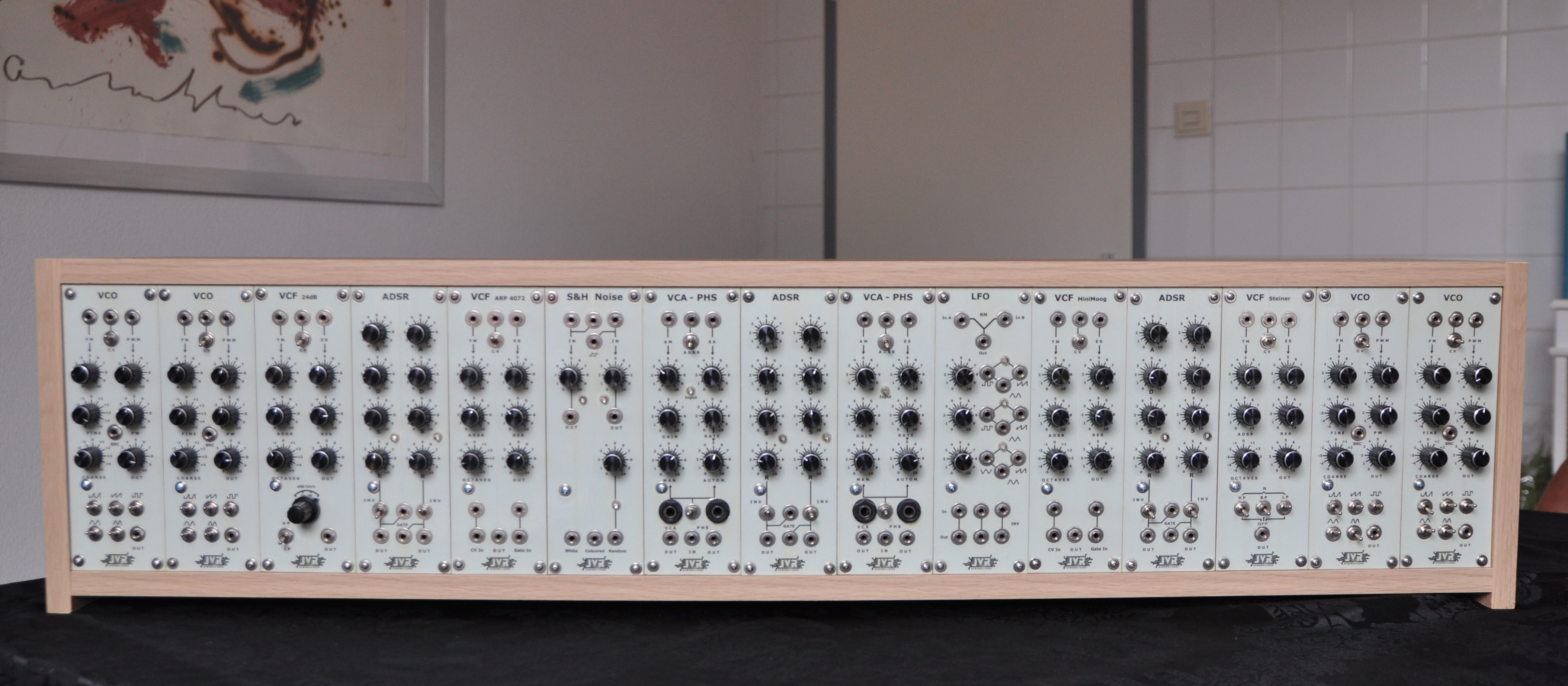

4x VCO, 3x ADSR, 1x LFO, 1x VCF 24dB, 1x VCF ARP 4072, 1x VCF Minimoog, 1x VCF Steiner Parker, 1x S& H + Noise, 2x VCA-PHS (phase shifter)
Dimensions of the:
Standard modules: 7x21 cm
Sequencer modules: size: 14x21cm
Modular cases:
Modular unit 1: Width (W) : 46cm, Height (H): 40 cm, Depth (D): 20 cm. / Weight: 7 kg
Modular unit 2: W: 53cm, H: 27 cm, D: 20 cm. / Weight: 6 kg.
Modular unit 3: W: 46cm, H: 27 cm, D: 20 cm. / Weight: 5 kg.
Modular unit 4: W: 110cm, H: 27 cm, D: 20 cm. / Weight: 11 kg.
The power supply is European/UK voltage, not switchable to US in itself.
|
|
| Age |
6 year |
| Weight |
n/a |
| Condition |
Very good |
| Location |
Netherlands |
| Vat |
Not from a VAT-registered business. But VAT / duty may be due if importing from outside your trade bloc. |
| Quantity |
1 item is available from the owner |
| Options |
User manual : No |
| |
Service manual : No |
| |
First owner : No |
| |
Original boxes : No |
| Plug type |
Europe standard plug |
| Voltage type |
Internal 220-240V power supply |
| Status |
Item has been sold or not sold in a previous auction |
| Sale type |
The item is on the auction rooms |
| Ending on |
08/04/2023 |
| Category |
|
| Serial number |
Unknown |
| Sphere reference |
# 25983 |
| Statistics |
Created on : 18/03/2023 |
|
Changed on : 24/03/2023 |
| |
Published on : 24/03/2023 |
| |
Displayed : 1012 time(s) by members and guests |
| Safety |
All electrical items sold in VEMIA are deemed to be trade sales. No warranty of electrical safety is given or implied. Many items are vintage and would not pass current electrical safety standards. It is the responsibility of the buyer to ensure that items are safe to use in their future environment - if necessary by using the services of a professional. |
|
|
|
|
|
|
|
|
|
